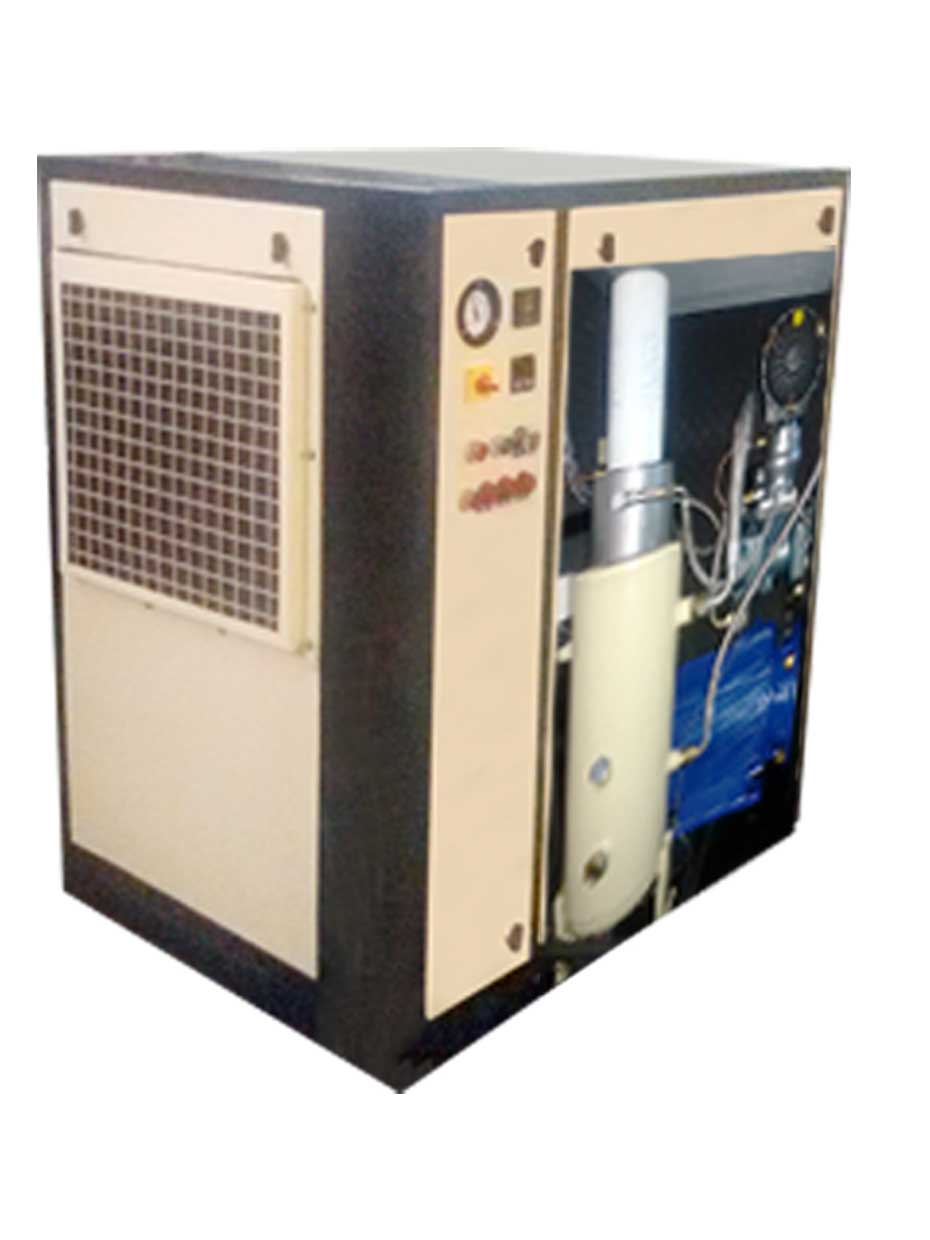

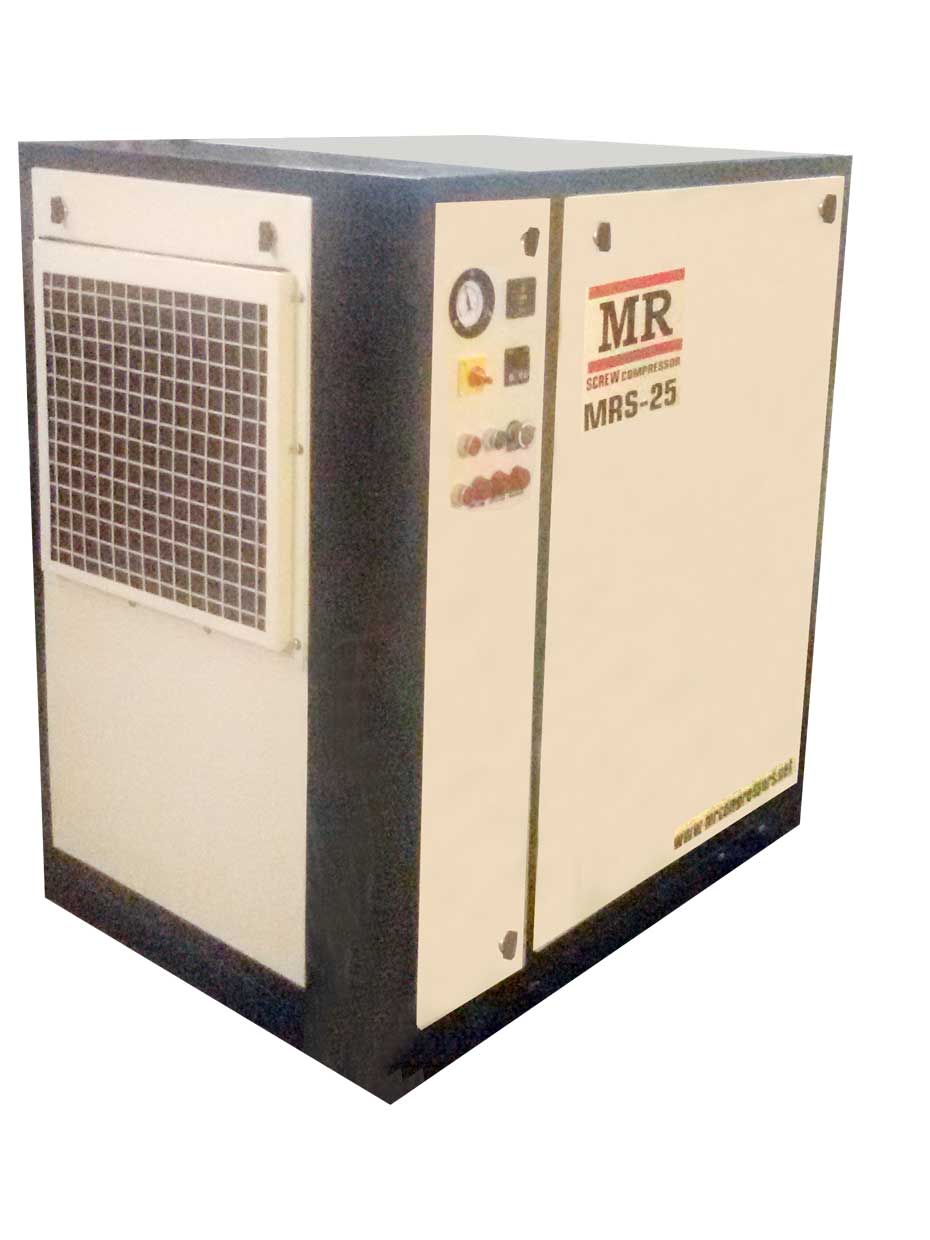

Screw Compressor

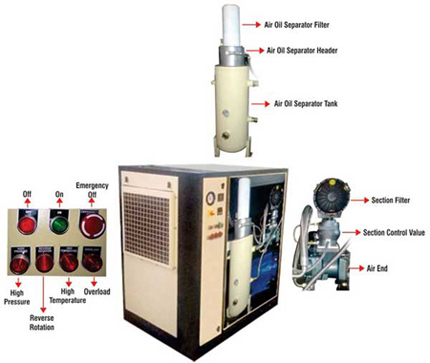

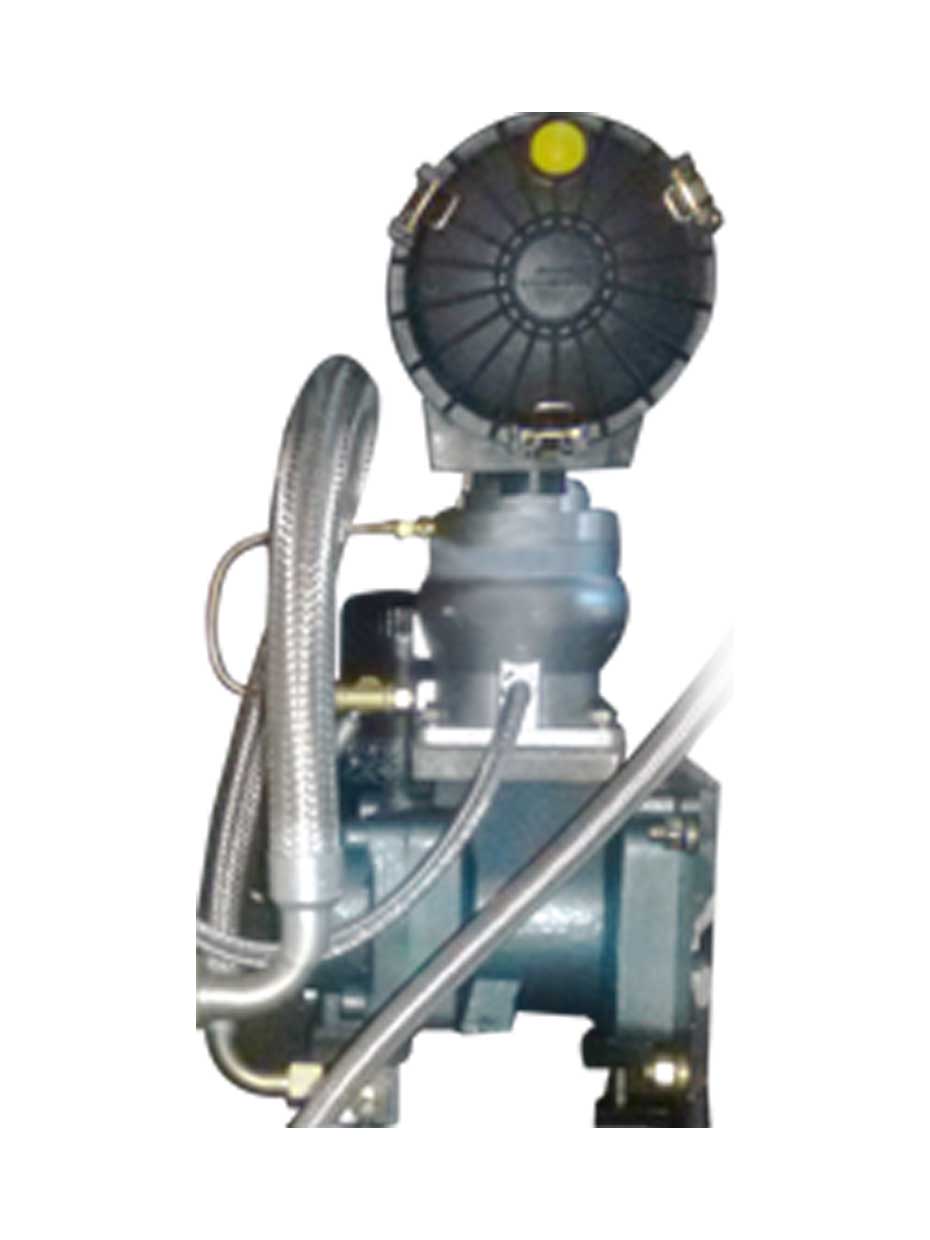

MR makes Screw Compressor assembled with GERMAN high efficient AIR END of wear free rolling profile with longest service life and simple maintenance.

Control System: Equipped with simple control system enable the operation of Air Compressor more reliable which could ensure Compressor running well continuously round the clock.

Air/oil separation system: the three stage separation system viz centrifugal and gravitational separation with air oil separation elements reduces oil content to 2-3 PPM.

Simple Diagnostics: With visual indication of fault warning.

Safety Tripping Interlocks: For over load, high air oil temperature, high pressure and wrong direction of rotation ensure safe operation.

Tank Mounted

Model	HP	Pressure		CFM	M3/Min	Db(A) (+/- 2) Mean notice level	Tank Capacity
		KG/CM2	PSIG
MRST - 5	5	7	100	18	0.51	68	220
		10	145	13.5	0.38	68	220
MRST – 7.5	7.5	7	100	27	0.76	68	220
		10	145	21	0.59	68	220
MRST -10	10	7	100	41	1.13	72	250
		10	145	33	0.92	72	250
MRST - 15	15	7	100	58	1.65	72	250/415
		10	100	46	1.3	72	250/415



Base Mounted

MRS - 15	15	7	100	58	1.65	72	BASE MOUNTED
		10	145	46	1.3	72
MRS - 20	20	7	100	85	2.42	72
		10	145	74	2.1	72
MRS - 25	25	7	100	105	2.99	72
		10	145	90	2.56	72
MRS - 30	30	7	100	126	3.58	72
		10	145	105	3.0	72
MRS - 40	40	7	100	190	5.41	72
		10	145	160	4.5	72
MRS - 50	50	7	100	225	6.4	73
		10	145	190	5.41	73
MRS - 60	60	7	100	265	7.5	73
		10	145	220	6.26	73
